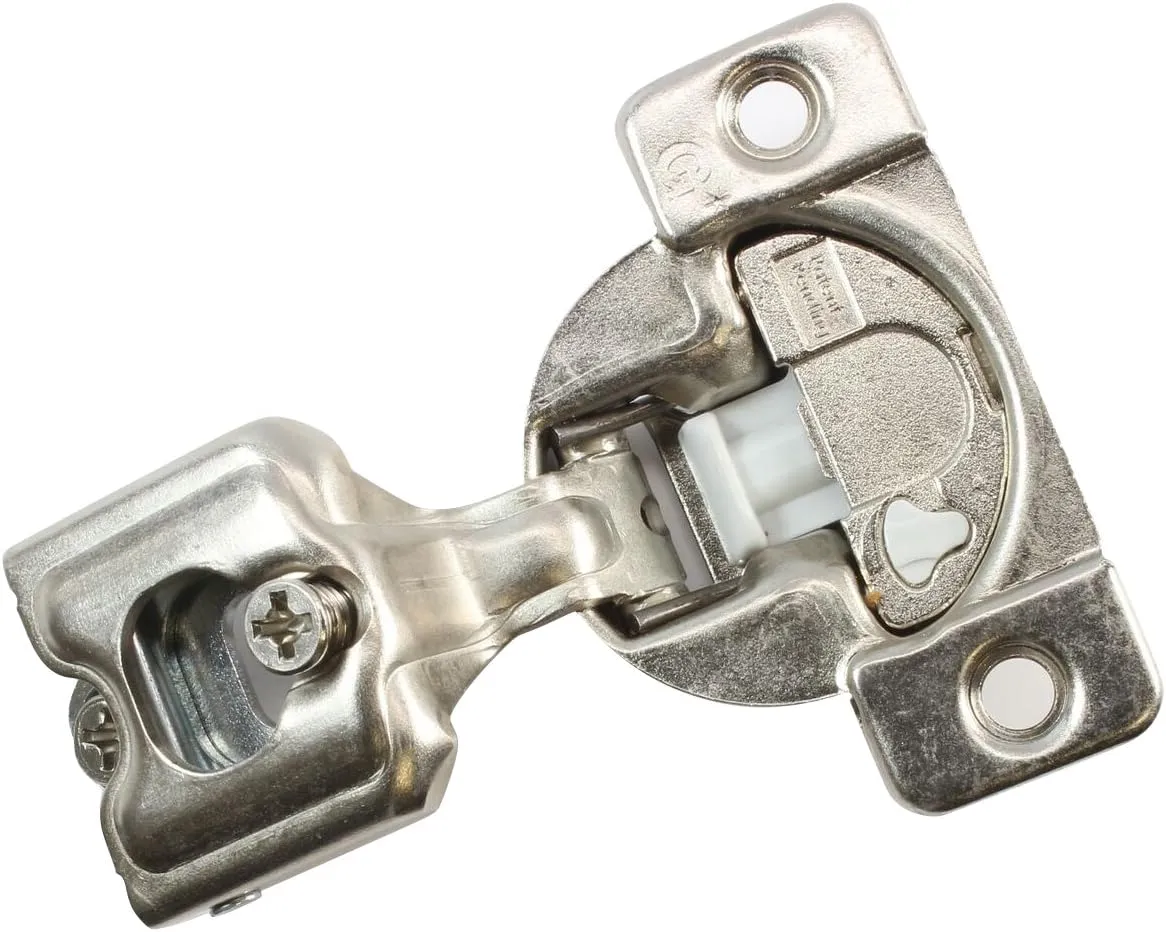

- GRASS TEC 864 Soft Close Cabinet Hinge MADE IN THE USA
- 3-Way Adjustable In and Out Cam Adjustment 108 Degrees Opening Angle
- Screw on wrap around mount cabinet hinge Includes 2x #6 x 5/8" Wood Screws and 1x #10 x 3/4" Wood Screw
- 1 in overlay soft closing hinge with custom 3 level soft close strength switch
MADE IN THE USA
Face Frame Hinge with integrated Soft-close
Soft-close damper is premounted in the hinge cup
One piece hinge and base plate combination
3 dimensional adjustment
10.7 mm (7/16”) cup drilling depth
Front locating tabs position hinge on face frame
Cam side adjustment
Cam depth adjustment
Height adjustment at mounting screw
Works with current Grass insertion machinery
Includes 2x #6 x 5/8" Wood Screws and 1x #10 x 3/4" Wood Screw
