COMPACT BLUMOTION hinges are interchangeable with current COMPACT hinges so there is no need to change existing setups or workflows.

Overload feature protects the hinge from damage if the door is slammed and maintains the BLUMOTION soft closing for the life of the hinge.

The BLUMOTION function can be easily deactivated on one of the hinges, allowing small or light doors to close with the same high quality of motion.

COMPACT hinges are small profile for face frame cabinets.

• 35mm Cup Diameter, 45mm Boring Pattern
• 11mm Cup Depth Minimum
• For 3/8" Overlays.
• Soft close is integrated into the hinge cup.
• One piece assembly, no additional mounting plate is required.
• Deactivation switch for small/light doors.
• Soft-close hinges come in the activated position, marked with an ‟I” (The Soft Close feature engages at 36°). The deactivated position is marked with a ‟0” (The Soft Close feature engages at 5°).
• 105° opening, concealed, soft-closing hinge
• Cup Drilling Distance (Boring Distance) is fixed at 3mm and requires a 7/16" (11mm) cup bore depth but will work with our standard ½" (12.7mm) depth.
• One-piece wraparound hinge
• 7/16" cup depth

Adjustability:

• /- 1/8" height adjustment.
• /- 1/16" side adjustment only.
• 3/32 and -1/32"cam depth adjustment.

Included:

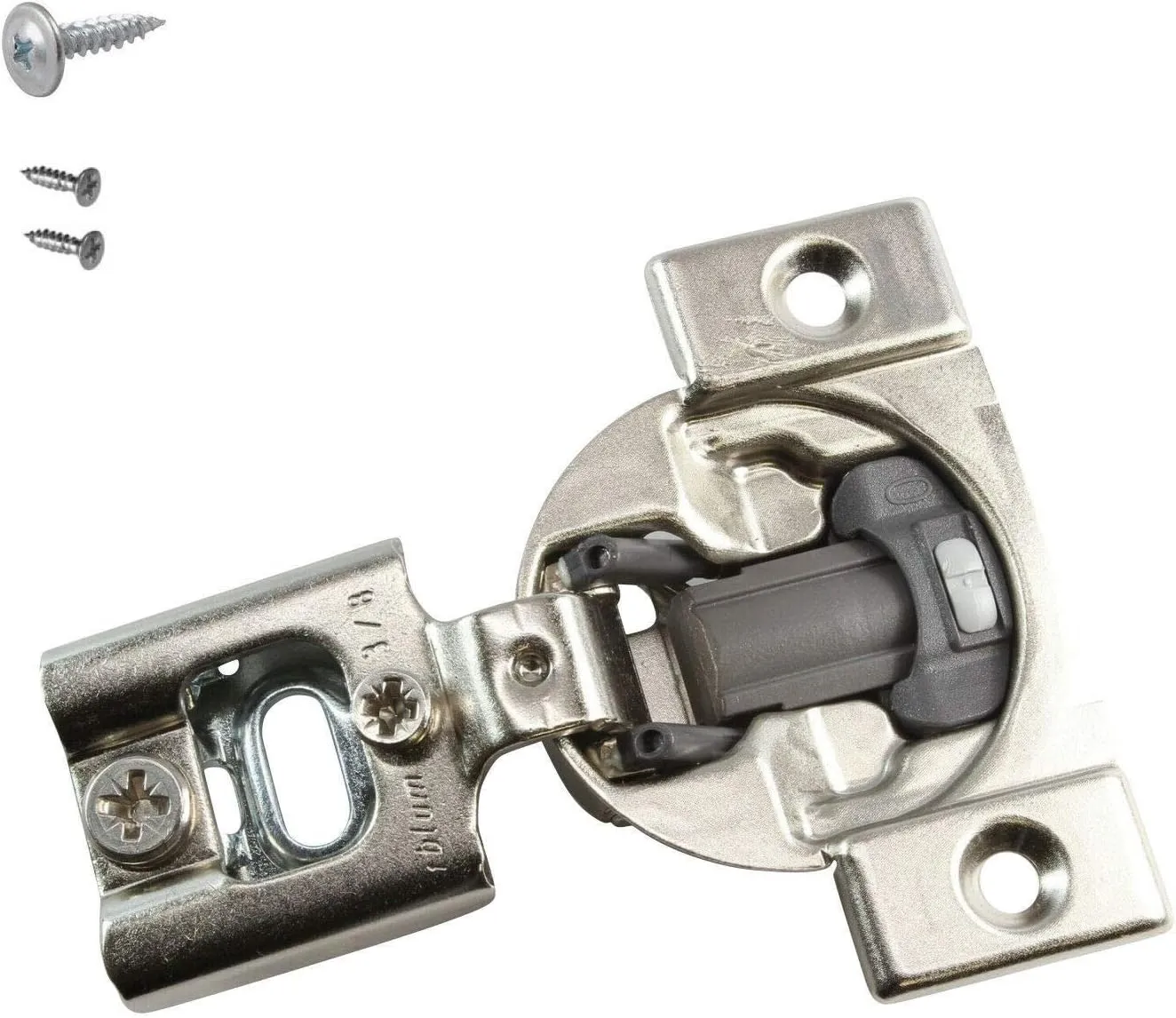

• Blum Hinge(s) with 3/8 Overlay. Part # 38N358B.06
• “Dexter Group” Branded screw(s) (3/4) for the cabinet side. Part#: DGM66567

Made in:

• Hinge made in: Austria
• Dexter Group screws are made in USA

Trademarks

• Blum and the Blum Logo are trademarks of Blum Inc.
• Dexter Group and the Dexter Group Logo are trademarks of Dexter group corp.
