- Dowsil SYLGARD 184 Silicone Elastomer Kit (From Dow Corning). Base A Curing Agent B Solidifier. Two-part, 10:1 mixing ratio. Room temperature RT and heat cure. Kit Set 1.1 lb = A 450g B 45g. Small Kit Set 60g = A 55g B 5g.
- Mixing ratio: 10:1. Color: Clear. Cure Type: Heat Cure, Room Temperature Cure. Dielectric Constant at 100 Hz: 2.72 Dielectric Constant at 100 kHz: 2.68. Dielectric Strength: 500 volts per mil v/mil. Specific Gravity: 1.03 at 25°C
- Electrical Component. Battery Pack, Boards and Assemblies. LED Lighting encapsulation. Power supplies. Connectors. Sensors. Industrial controls. Transformers Amplifiers. High voltage resistor packs. Solar cells. Adhesive handling beam lead integrated circuits during processing.
- Rapid Room temperature RT / Heat cure. Good strength. Flowable transparent encapsulant. Good dielectric properties. High transparency allows easy inspection of components. UL 94 V-1 flammability rating. UL 746C Recognized

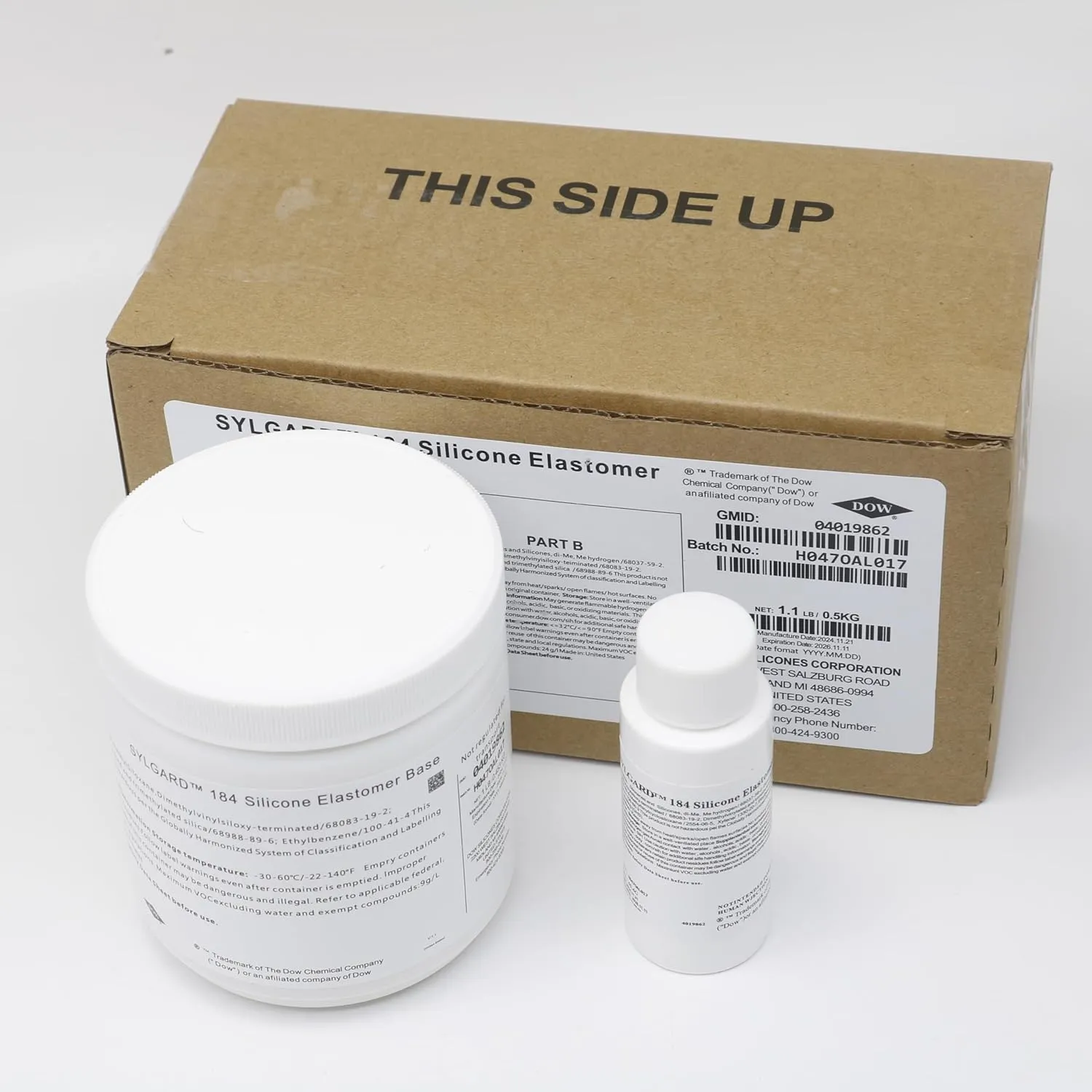

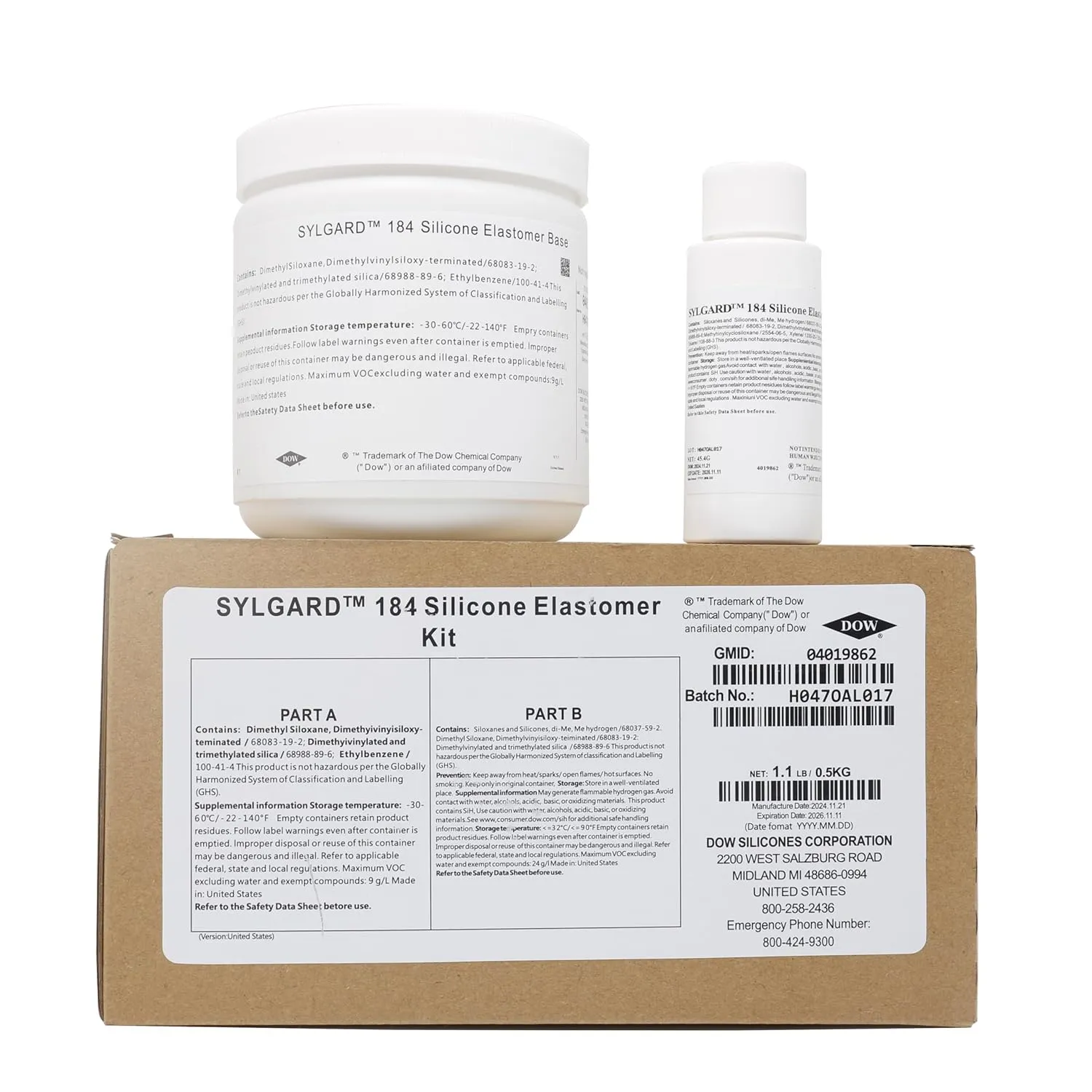

Dowsil SYLGARD 184 Silicone Elastomer
From Dow Corning
Two Components 2 Parts
Base A Curing Agent Solidifier B
1.1 lb Kit = A 450g B 45g
60g Small Kit = A 55g B 5g
Two-part, clear, 10:1, RT and heat cure, good strength, UL and Mil Spec, same as SYLGARD 182 but with faster RT cure.
Uses
LED Lighting encapsulation
Power supplies
Connectors
Sensors
Industrial controls
Transformers
Amplifiers
High voltage resistor packs
Relays
Adhesive/encapsulant for solar cells
Adhesive handling beam lead integrated circuits during processing
Benefits
Flowable transparent encapsulant
Room temperature or Heat cure
Rapid, versatile cure processing controlled by temperature
Good dielectric properties
High transparency allows easy inspection of components
UL 94 V-1 flammability rating
UL 746C Recognized
Application
Use: Battery Pack, Boards and Assemblies, Components
Certifications & Standards
Regulatory Approvals: MIL Spec, UL Recognized
Product Use and Formulating
Cure Type: Addition Cure
Number of Parts: Two Part
Typical Properties
Color: Clear
Cure Type: Heat Cure, Room Temperature Cure
Dielectric Constant at 100 Hz: 2.72
Dielectric Constant at 100 kHz: 2.68
Dielectric Strength: 500 volts per mil v/mil
Opacity: Transparent
Specific Gravity: 1.03 @ 25°C
- Package Dimensions : 8.35 x 4.69 x 4.49 inches; 1.1 Pounds
- Date First Available : September 24, 2024
- Manufacturer : Dowsil
