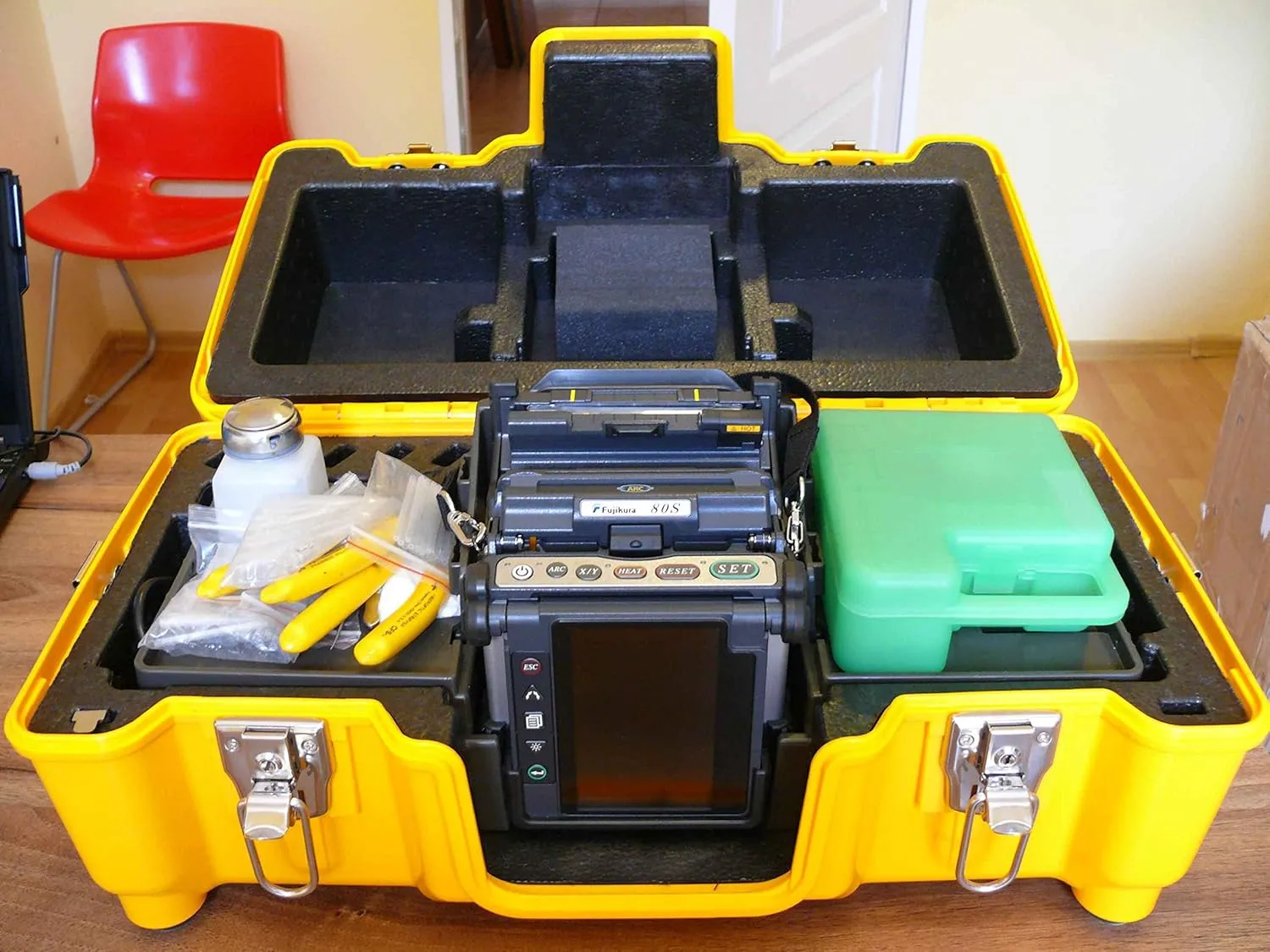

- Package Accessories: FSM-80S fusion splicer Battery BTR-09 Battery Charge Cord, DCC-18 Fujikura Fiber Cleaver, CT-06 AC Adapter, ADC-18 AC Cord, ACC-14 Spare Electrodes (pair), ELCT2-20A Sheath Clamp, S70A USB Cable, Alcohol Dispenser, Screw Driver, Splicer Carrying Strap, Quick Reference Guide, Video Instruction Manual Transit Case with Carrying Strap, CC30
- Splices all known types of fibers. Fiber core alignment. Typical average splice loss for single mode cable with G.652D fiber is only 0.02 dB. Reduced splicing time – 7 seconds only. Heating time – 14 seconds only.
- Reduced splicing time – 7 seconds only.
The Fujikura 80S is equipped with a precision, fixed v-groove for splicing single fibers. Incorporating the proven ruggedized features pioneered by Fujikura, the 80S has added automated and enhanced user control features to increase splicing efficiency. A user programmable, automated wind protector expedites the splicing process by automatically closing to initiate the splice process, and opening upon splice completion. A new auto-start “clamshell design” tube heater applies heat to both sides of the splice protection sleeve. The result is a total splice process time of approximately 55 seconds! Ruggedness and durability are greatly enhanced by a mirror-less optical system and "severe-impact resistant" monitor. Battery capacity is now 110 splices/shrinks. An innovative transit case doubles as a built-in or mobile workstation and makes splicing easier than ever before. Automatic and fully programmable wind protector 40-second tube heater High capacity Lithium-Ion battery pack (110 splices/shrinks) On-board training and support videos Multi-function transit case with integrated workstation Show MoreShow Less
