OPTOTRONIC Linear Programmable LED Drivers

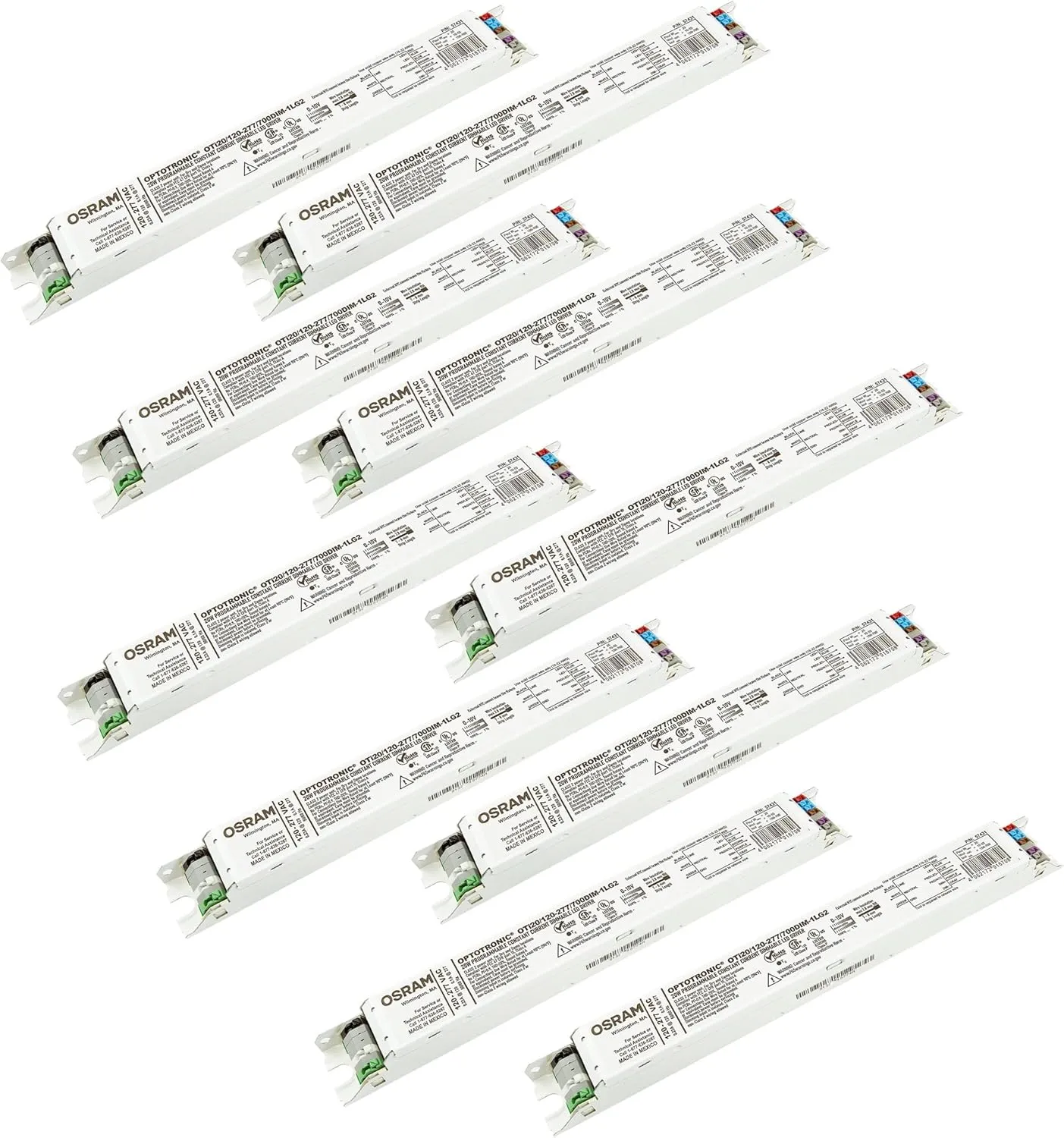

Pack of 10 - Osram 57431 OPTOTRONIC OTi 20/120-277/700 DIM-1 L G2 20W Constant Current, 0-10V Dimmable LED Driver

Product Features

• Programmable Features:
• • Output current
  • Dimming level
  • Dim-to-off
  • Soft Start
  • LED thermal protection
  • Auxiliary output voltage
  • Constant lumen output
  • End-of-life indicator
• Input Voltage: 120-277V ( /- 10%)
• Frequency Range: 50-60 Hz ( /- 10%)
• Max. Output Power (W): 20W
• Dimming Control: 0-10V (Isolated)
• Dimming Range: 1-100%
• Output Voltage (VDC): 10-55VDC
• Output Current (mA): 150-700mA (1mA step), Default 350mA
• Product Dimensions (L x W x H): 11.00" x 1.14" x 1.00"
• Product Weight: 8.3oz
• Quantity: 10
• UL Environmental Rating: Dry & Damp

Product Family Features

• OEM Programmable with 1mA resolution to perfectly match LED load and maximize performance
• Integrated OEM programmable features include:
• • Constant lumen maintenance
  • End of life indication
  • LED thermal protection
• Programming doesn't require powering up or connecting the power supply to AC line voltage
• Specification grade dimming down to 1% or 10% on 0-10V dimmers
• Available optional auxiliary output to power 12 V, 20 V, and 24 V low power applications
• Slim form factors
• Input voltage:
• • Universal 120-277 VAC 50/60Hz
  • 347 VAC 50/60 Hz
• UL Class 2 output for safe operation, Class P

Areas of Application

• Indirect/direct
• Linear
• Recessed troffer

• Product Dimensions ‏ : ‎ 11 x 2 x 1 inches; 5 Pounds
• Date First Available ‏ : ‎ October 12, 2021
• Manufacturer ‏ : ‎ Osram
• Country of Origin ‏ : ‎ Mexico
