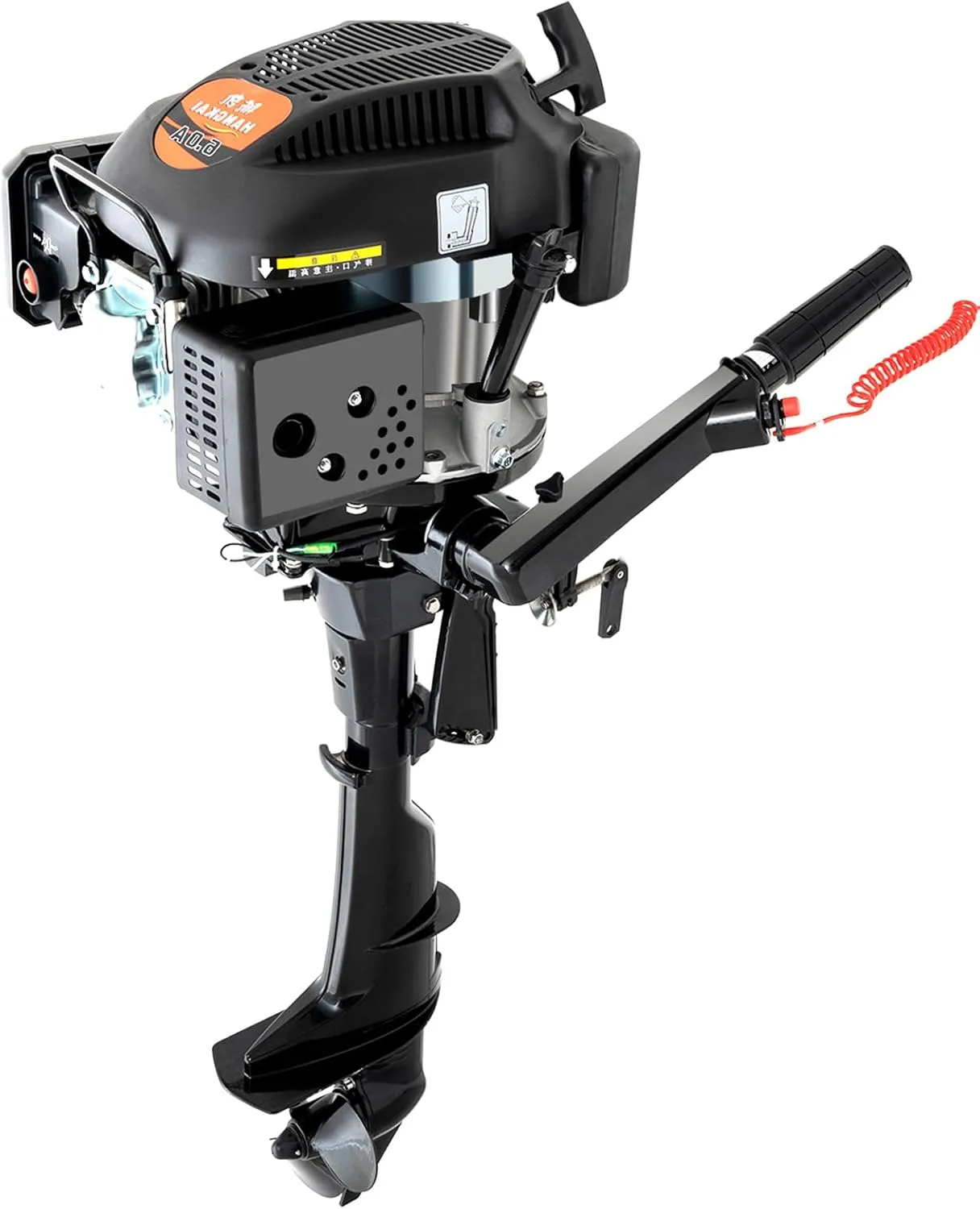

- ✔High-quality Material: High-quality aluminum alloy, combined with spray painting technology, has excellent corrosion resistance, wear resistance, heat resistance, impact resistance, deformation resistance, and other properties. You can use it in water with confidence.
- ✔Outstanding Performance: The 4-stroke 6hp engine with 4500-5500r/min can provide a speed of 4-15km/h to give you a comfortable and labor-saving sailing experience. Moreover, the three-blade propeller and streamlined design can reduce water resistance and provide greater power during operation.
- ✔Easy to Operate: This product has two gears: forward and neutral. By controlling the throttle lever and turning the throttle handle, you can freely control the navigation direction, and achieve infinite speed change, or you can cruise at a constant speed to enjoy different cruising experiences according to your needs.
- ✔High Safety: The air cooling system helps cool the engine for longer life. Suspension tilt adjustment pins can be used to adjust the boat's sailing attitude at any time to keep it sailing smoothly. The anti-swirl plate reduces swirl, allowing you to sail more safely. The emergency flameout rope can help you to turn it off quickly. At the same time, it can also automatically turn off the machine when it overheats, making it safer for you to use.
- ✔Stable Engine: The dense heat dissipation holes on the casing help the engine dissipate heat quickly and promptly. Moreover, the air filter helps to filter impurities in the air and reduce the wear and tear of dust and sand on the engine, which can achieve stable machine operation.
Specification
Material: Aluminium Alloy, Rubber
Color: Black
Type: 4-stroke 6HP
Displacement: 140CC
Gear Ratio: 1:1.5(16/24)
Cylinder: 1
Max.Output: 3.75kw
Rotation: 4500-5500r/min
Speed: About 4-15km/h(2.49-9.32Miles/h)
Gear Positions: F-N
Ignition System: TCI
Cooling System: Air-cooling
Control System: Tiller Control
Starting System: Manual Start
Control System: #92 Gasoline
Recommended Engine Oil: Four Stroke Engine Oil
Mixing Ratio: Pure Gasoline
Trim and Tilt System: Manual Tilt
Fuel Consumption: About 1L/H(0.26gal/H)
Standard Fuel Tank Capacity: 1.2L/0.32gal
Bore Stroke: 6.1*4.8cm/2.4*1.89inch
Shaft Length: 38.1cm/15inch
Adaptive Transom Plate Height: ≤44cm/17.32inch
Recommended Propeller Range: 3-7 1/2''x5''
Propeller Diameter: 16cm/6.3in
Joystick Length: 39cm/15.35in
Handle Length: 15cm/5.91in
Oil Filling Pipe Length: 13cm/5.12inch
Product Height: 107cm/42.13inch
Gross Weight: 24.45kg/53.9lbs
Net Weight: 20.95kg/46.19lbs
Product Size: 38*33*107cm/14.96*12.99*42.13inch
Package Size: 112.5*46*47.5cm/44.3*18.11*18.7inch
Package Included
1* Outboard Engine
1* Funnel
1* English User Manual
All Accessories for Installation
Notes
1. Please carefully read the manual and strictly follow the precautions to have a better experience.
2. Please measure the height of your boat before purchasing to ensure suitability for this product.
3. Please start the motor in the water.
4. Please note that this product should use 92 # unleaded gasoline, and an appropriate amount of 4-stroke engine oil needs to be added through a dedicated oil filling hole for lubrication.
5. Please do not drive too fast during the running-in period. After the running-in period, the gear oil needs to be replaced, and the second replacement time is about 100 hours or 6 months later.
6. After cruising in seawater or turbid water, please clean the outboard motor with fresh water. The engine should be stored in a dry and well-ventilated place, and avoid direct exposure to sunlight.
