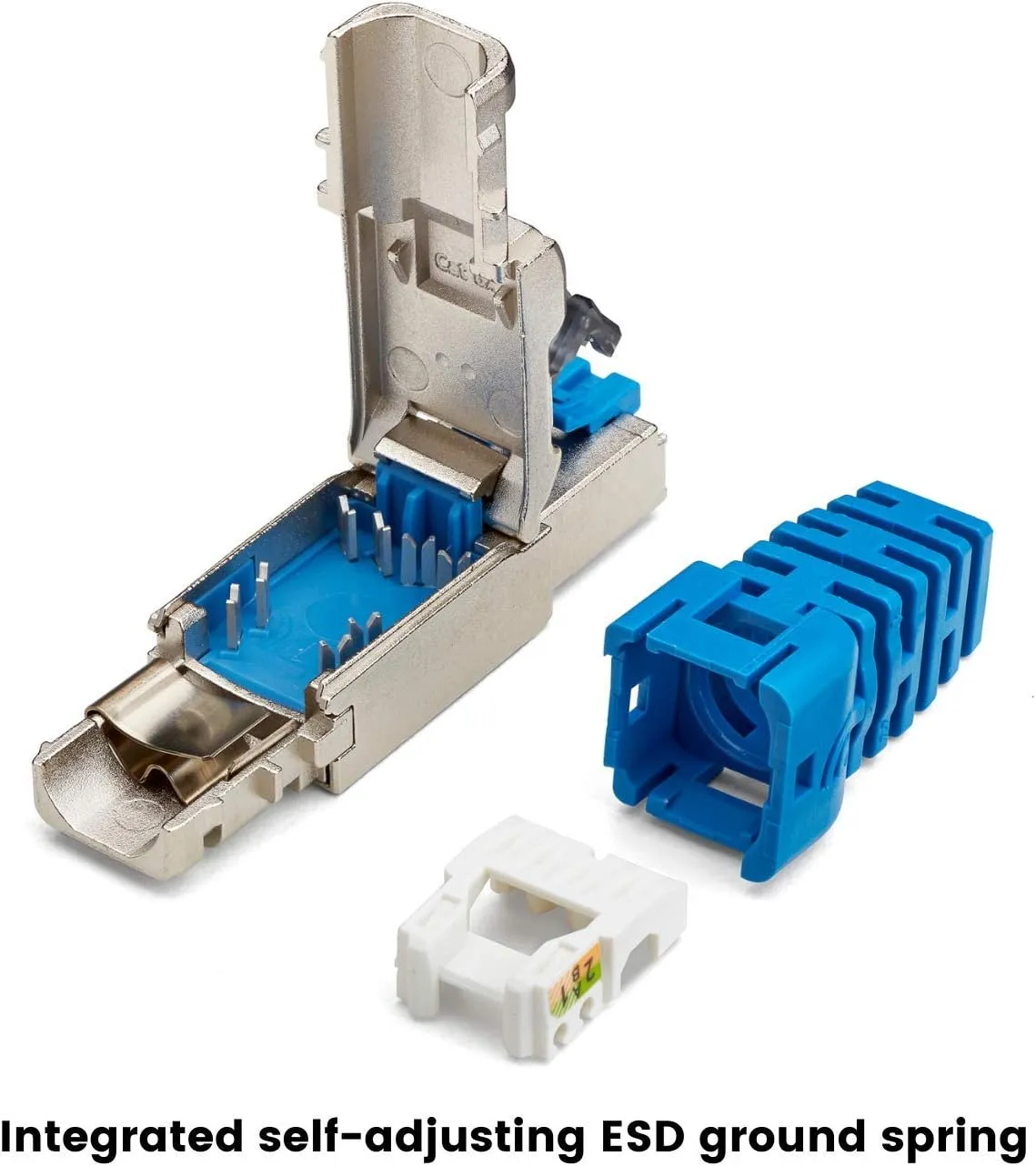

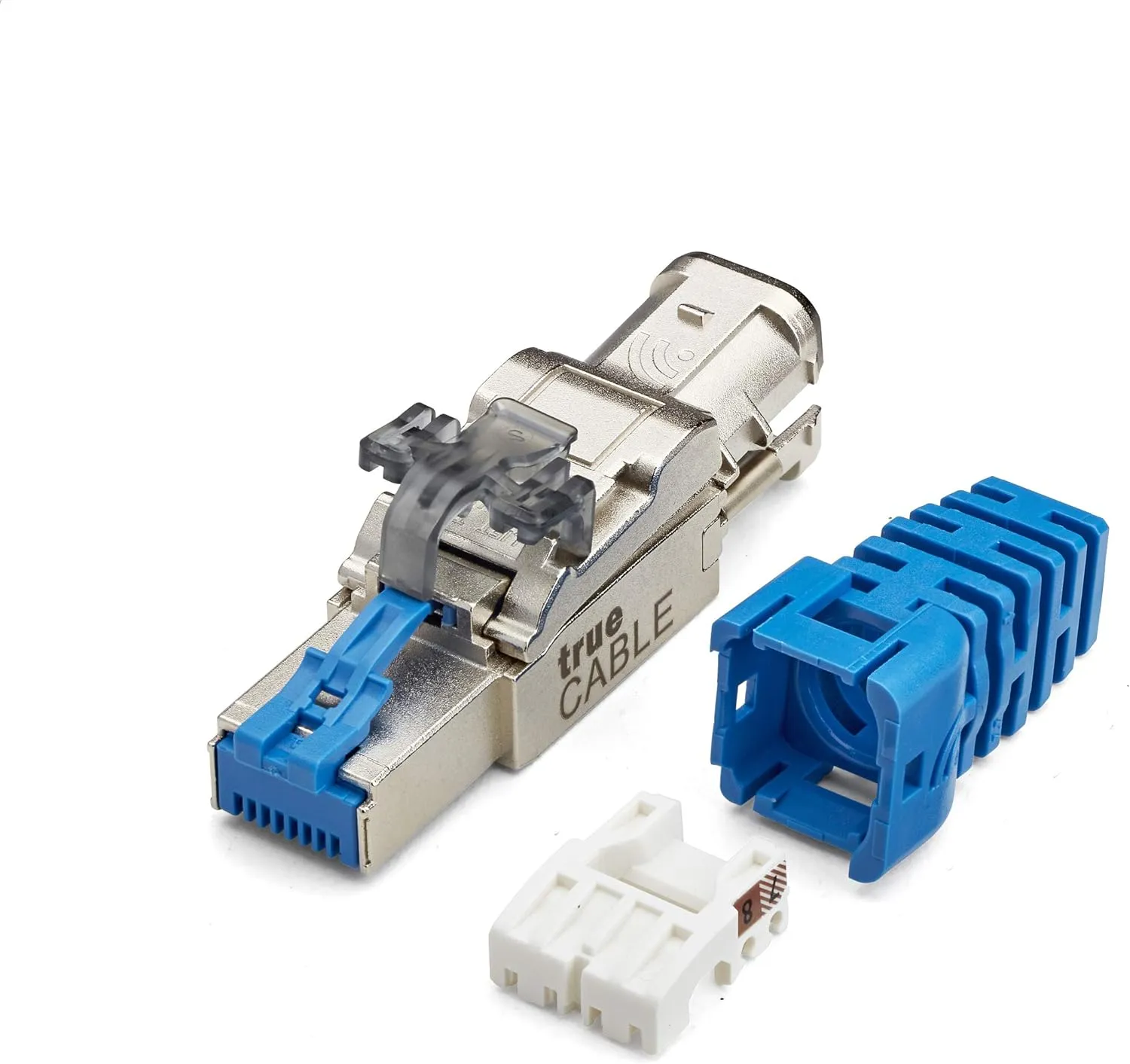

- MAXIMUM PERFORMANCE. Component level rated. Suitable for 10 Gigabit (10/100/1000/10000 Mb/s) up to 328 feet. Compatible with 23 to 24 AWG solid copper conductors. Supports PoE/PoE /PoE (IEEE 802.3af/at/bt) 4PPoE up to 100W. Press-Fit Technology makes our product more reliable and increases transmission performance. Tested up to 600 MHz. Self adjusting spring in the strain relief neck assures the cable shield is in contact with the metal housing, providing resilient grounding.

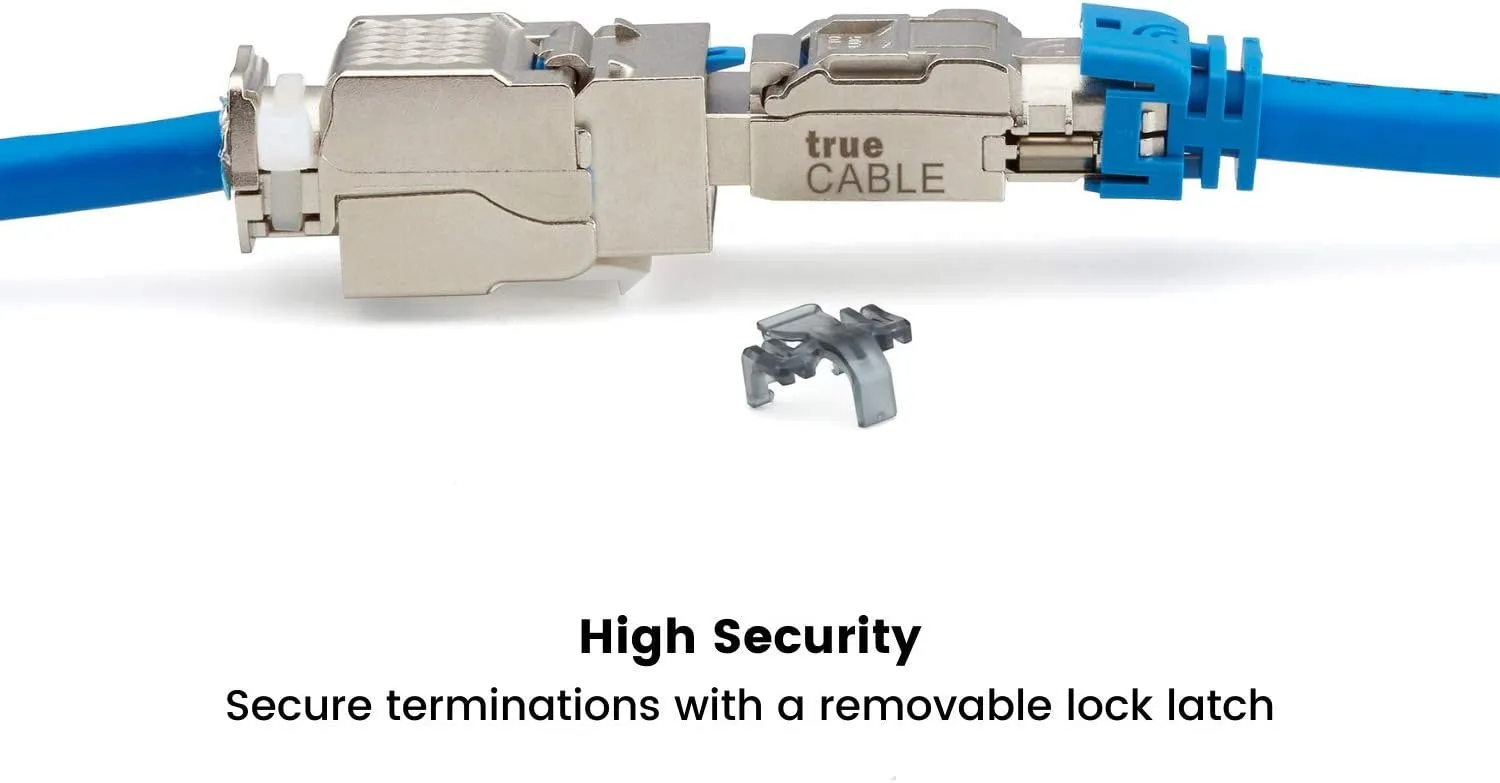

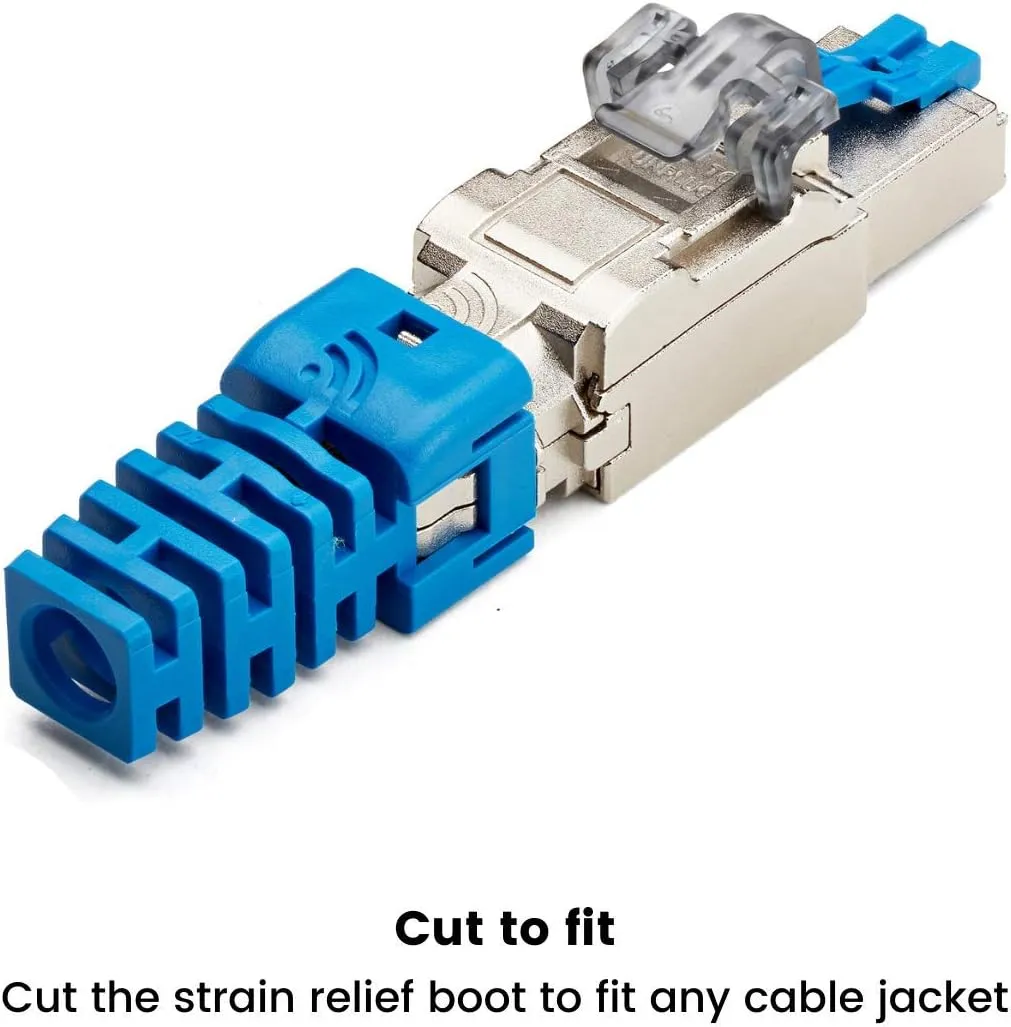

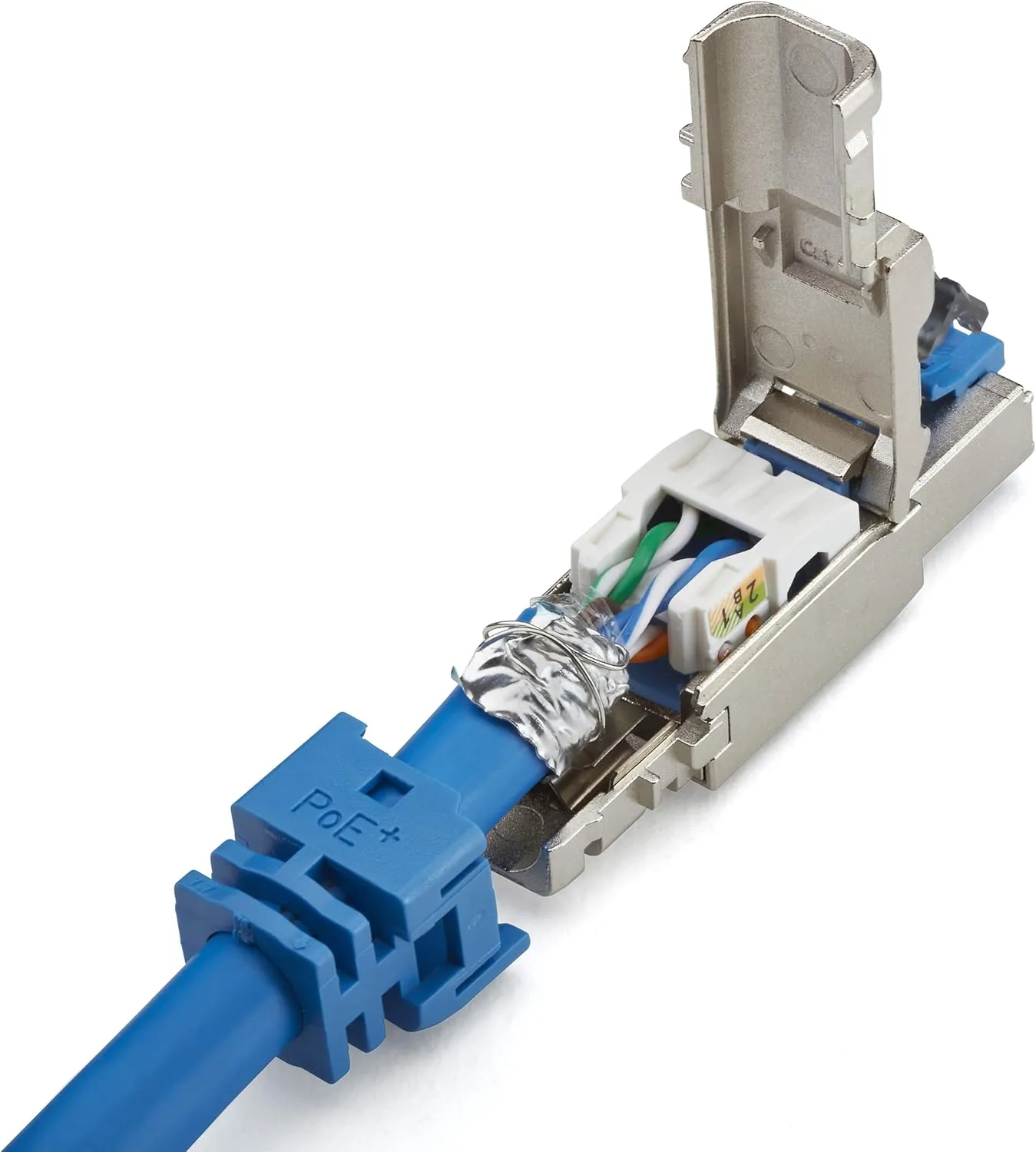

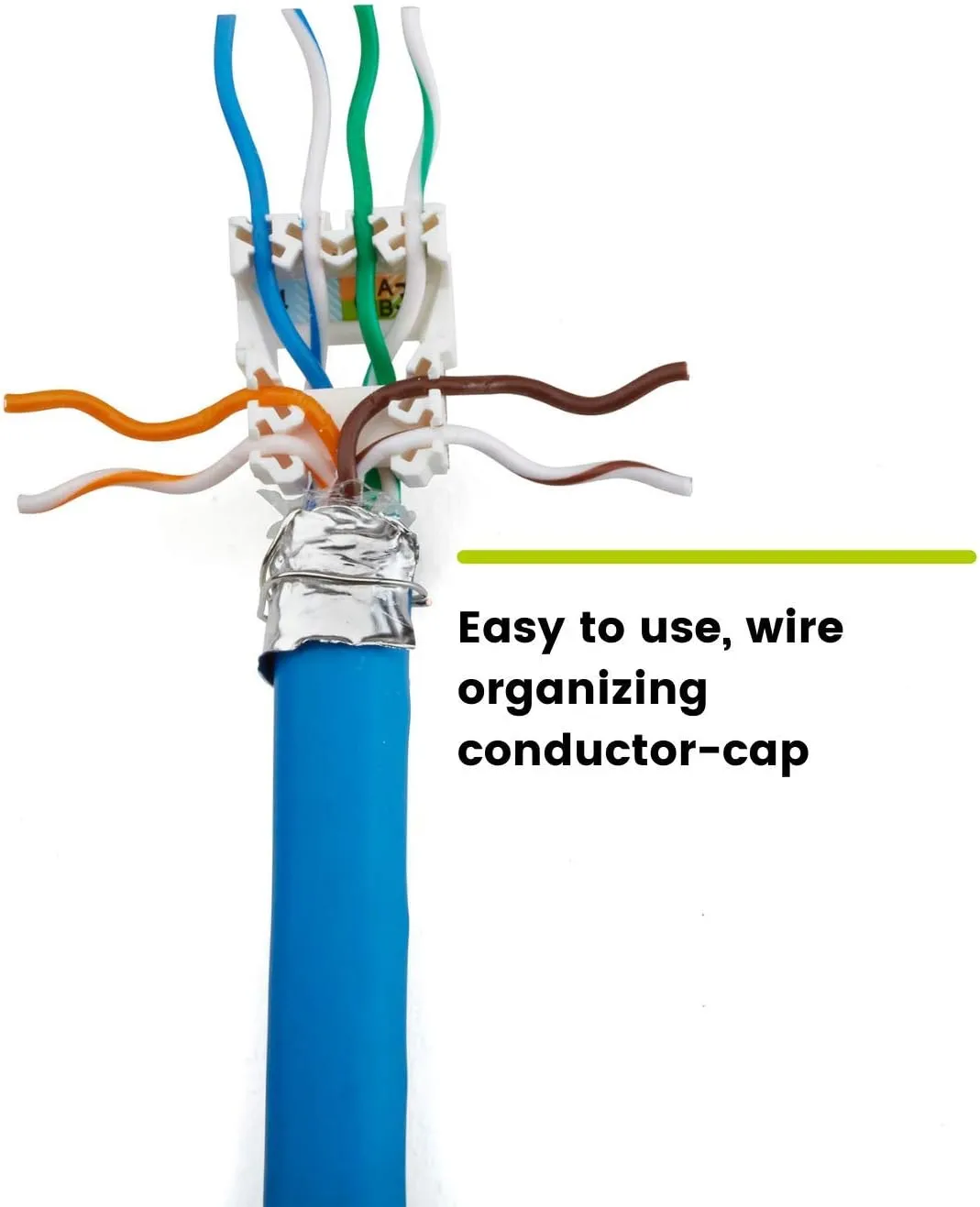

- EASY TO USE. Self terminating means no more punch down tools required. Our 90 degree tool less design provides maximum snap-shut confidence. The dual level termination holder cap is marked with highly visible colors for easy T568A or T568B wiring and helps keep conductor pairs separate. Integrated anti-disconnect slide lock prevents accidental disconnections. The lock may also be removed to prevent tampering. Cut-to-fit strain relief boot supports ∅5.80 - 7.80mm cable jackets.

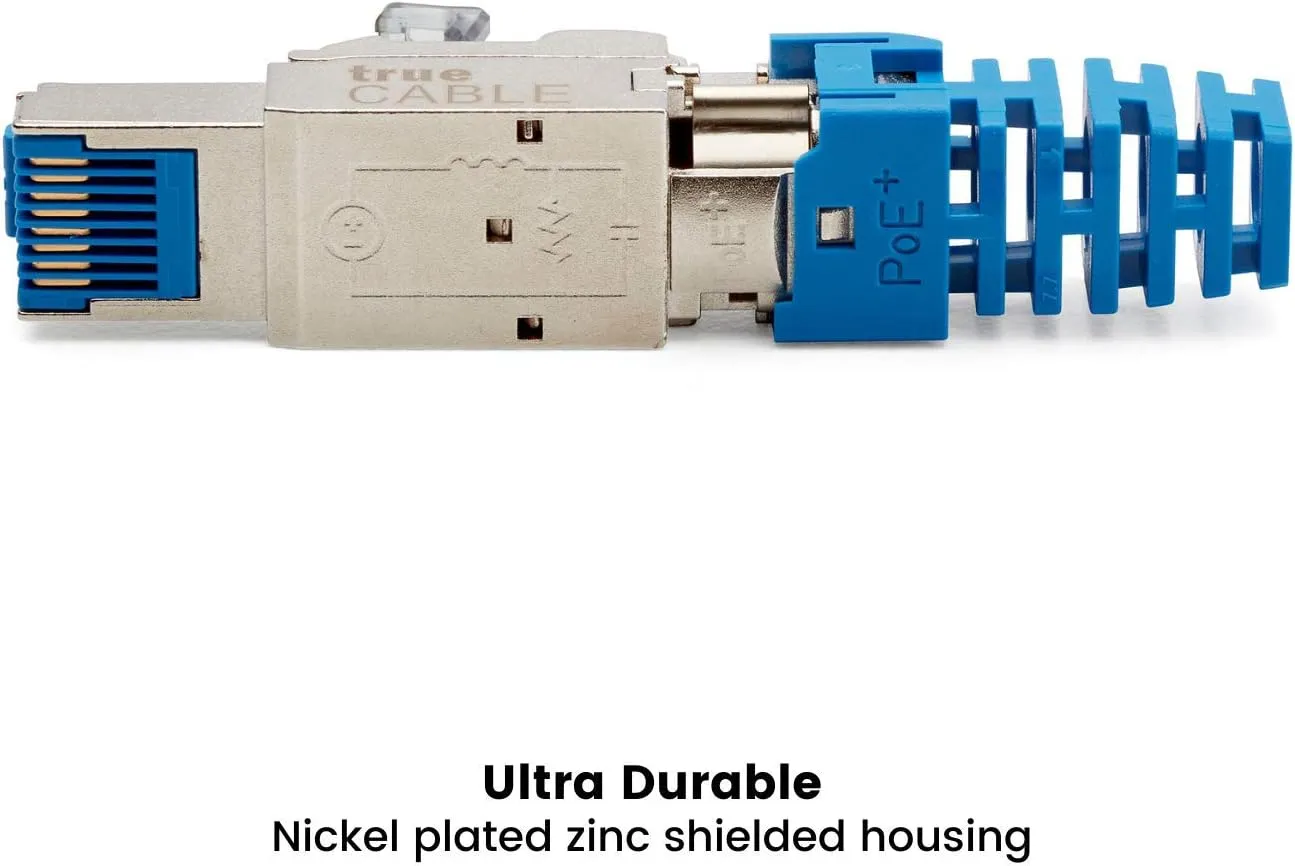

- VERSATILE. 100% compatible with any RJ45 female Ethernet port. Ultra durable metal construction. Integrated full circumference strain relief neck provides additional termination protection from conductor stress pre and post installation. No more ruined terminations due to handling. Compatible with our trueCLOSE tool and F/UTP Ethernet cables. Fully backward compatible with Cat5e and Cat6. Also works with unshielded (U/UTP) cables.
- PREMIUM QUALITY. ANSI/TIA 568 2.D Certified by trueCABLE. CE Listed. TUV RoHS-2 Certified, US TAA compliant, ISO/IEC Certified. Tested in the real world by real installers. Backed by our FOREVER WARRANTY.

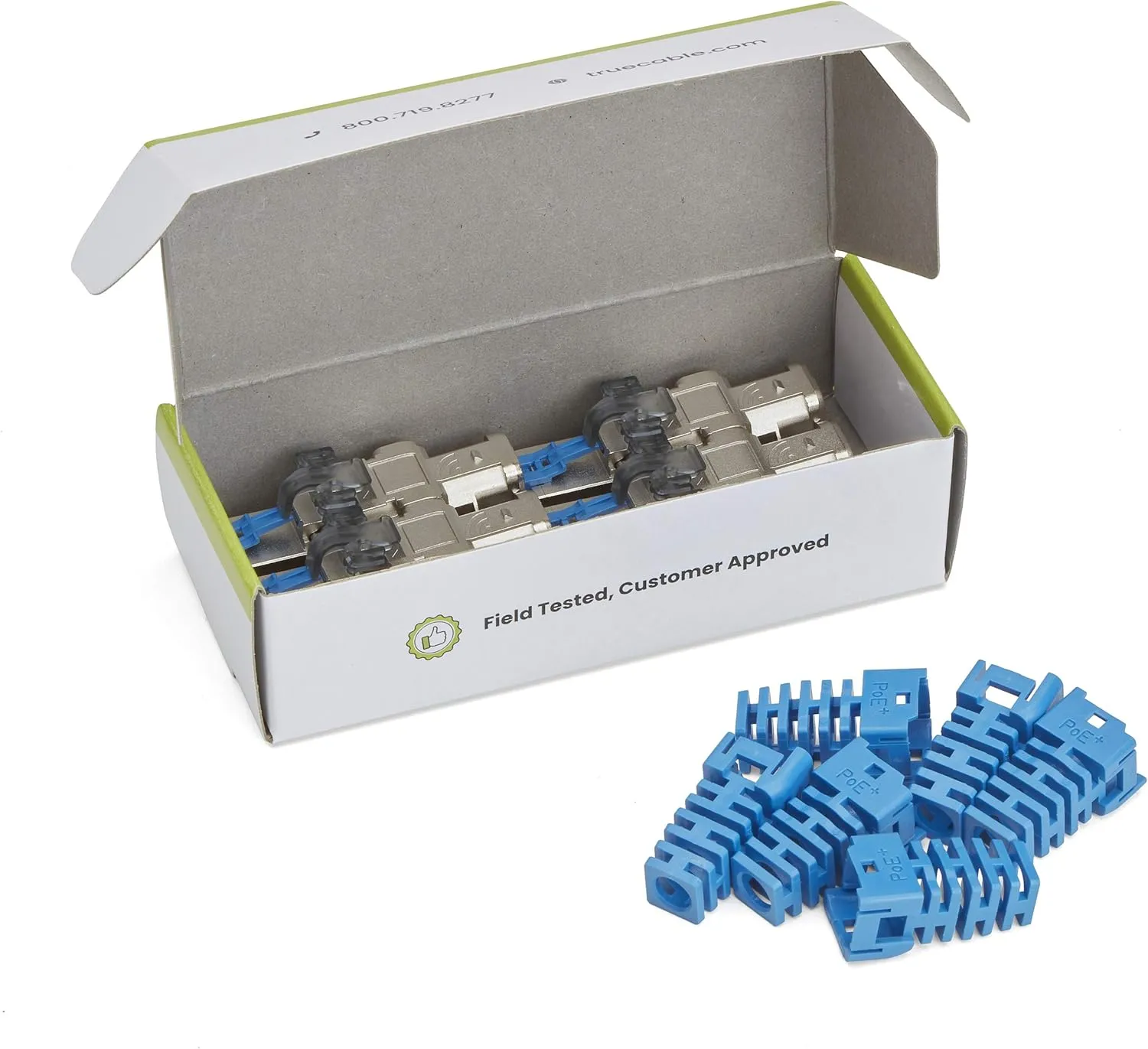

- 6 PIECE BOX. Each field termination plug includes a dual level conductor guide holder, nylon tie, cut to fit universal boot, plus full instructions. These durable and time saving component level field termination plugs are sure to make your install hassle-free.
